1N5822 40V 3A schottky rectifier diode for use in low voltage
Description:
A Schottky diode, similar to a regular diode, limits the flow of electricity to one direction, much like the action of a one-way water valve. The Schottky diode, however, has an enhanced electrical response time because of a much lower voltage dissipation. Common malfunctions of a Schottky diode include electrical shorting and overheating.
The semiconductor composition of a Schottky diode is slightly different from a normal diode, and this results in a much smaller forward voltage drop, which is usually between 0.15V and 0.45V. They’ll still have a very large breakdown voltage though.
Schottky diodes are especially useful in limiting losses, when every last bit of voltage must be spared. They’re unique enough to get a circuit symbol of their own, with a couple bends on the end of the cathode-line.
Features:
• Extremely low VF
• Epitaxial construction
• Low power loss, high efficiency
• Low stored charge, majority carrier construction
• Plastic material has UL flammability classification 94V-0
Application:
• Schottky diodes are used as general-purpose rectifiers.
• Schottky diodes are used in radio frequency (RF) applications.
• Schottky diodes are widely used in power supplies.
• Schottky diodes are used to detect signals.
• Schottky diodes are used in logic circuits.
Maximum Ratings & Thermal Characteristics:
Rating at 25℃ ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.
For Capacitive load derate current by 20%.
| Parameter | Symbol | 1N5822 | Unit |
| Max.repetitive peak reverse voltage | VRRM | 40 | V |
| Max. RMS bridge input voltage | VRMS | 28 | V |
| Max. DC blocking voltage | VDC | 40 | V |
| Max. average forward rectified output current at TA=75℃ | IF(AV) | 3.0 | A |
| Peak forward surge current single sine-wave superimposed on rated load | IFSM | 80 | A |
| Typical thermal resistance per element | ReJA | 30 | ℃/W |
| Typical junction capacitance per element | Cj | 250 | pF |
| Operating junction and storage temperature range | Tj TSTG | -55 to +125 | ℃ |
Electrical Characteristics:
Rating at 25℃ ambient temperature unless otherwise specified. Resistive or Inductive load, 60Hz.
For Capacitive load derate by 20 %.
| Parameter | Symbol | 1N5822 | Unit |
| Max. instantaneous forward voltage drop per leg at 1.0A | VF | 0.525 | V |
| Max. DC reverse current at rated TA=25℃ DC blocking voltage per element TA=25℃ | IR | 2.0 20.0 | mA |

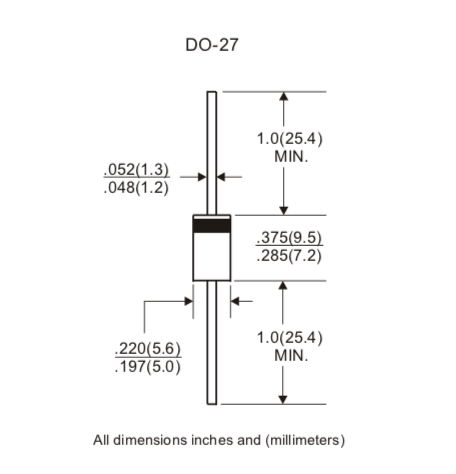

Dimension:
