130×180mm Brass Square Junction Box For Professional KTV Loudspeaker

Name: 130180mm Brass Square Junction Box For Professional KTV Loudspeaker
Brand: FENFA
Price: 1 USD

Buy cheap 130×180mm Brass Square Junction Box For Professional KTV Loudspeaker product

Brand Name : FENFA

Model Number : F283

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : Speaker Terminal Cup

Application : Audio & Video

Surface treatment : Gold or Nickel

Material : ABS, brass

Color : Black

Size : 130*180mm

Contact Now

130*180mm Square Type Junction Box For Professional KTV Loudspeaker

Feature:

• 2x binding post gold plated

• 2x Speakon Jack

• Perfect for speakers that utilize a separate amp for woofer and tweeter
• Ideal for dual voice coil subwoofer input and output terminals
• Accepts up to 12 gauge wire
• Can also be used with dual banana plugs

• Works great for home and car speaker boxes
• Easy to install

Specification:

Material	Copper, Plastic
Withstand voltage	AV500V(50Hz)/min.
Actuating force	1kgf
Contact resistance	≤0.03Ω
Life	5000 cycles
Temperature	-40~55℃
Rated load	AC50V 3A
Wire range	AWG #24~#16
Insulation resistance	≥100MΩ DC 500V
Certification	RoHS

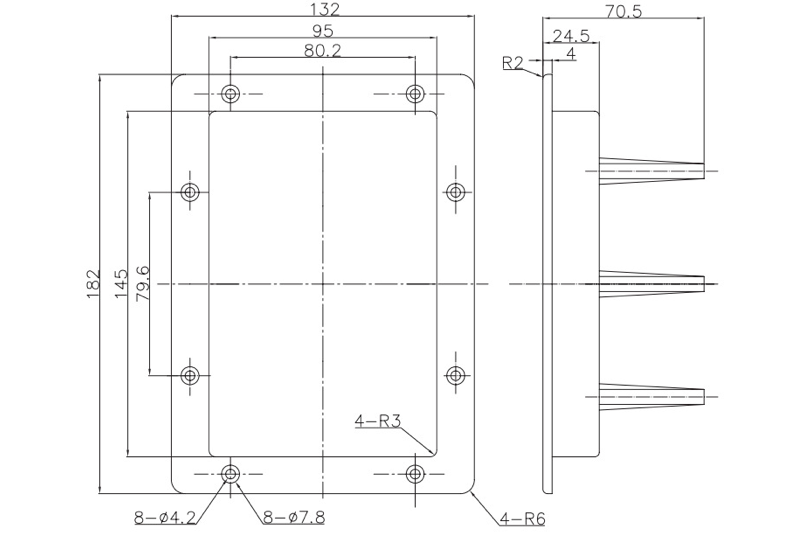

Dimension: (mm)

130×180mm Brass Square Junction Box For Professional KTV Loudspeaker
