Mini XLR Male Plug For Mechanical Cable Mounting With Max Cable Section 0.5m㎡

Name: Mini XLR Male Plug For Mechanical Cable Mounting With Max Cable Section 05m
Brand: ANYO
Price: 1 USD

Buy cheap Mini XLR Male Plug For Mechanical Cable Mounting With Max Cable Section 0.5m㎡ product

Brand Name : ANYO

Model Number : T401

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : Audio connectors

Rated voltage : 125V

Rated current : 5A

Lifetime : >2000 cycles

Weight : 10g

Insulation resistance : 1000MΩ/AC500V

Contact Now

Mini XLR Male Plug For Mechanical Cable Mounting With Max. Cable Section 0.5m㎡

Description:

Mini XLR connectors are available as panel or cable mount. These smaller versions of a standard XLR connector provide a highly reliable multi contact connection.

Feature:

• All copper material with contact and housing

• Smart appearance, firm connection

• Avaiable for 3/4/5/6/7 poles

Specification:

Description	Product Attribute
Connector	XLR connectors
Contact material	Copper alloy
Contact plating	Silver
Current rating	5A
Gender	Male
Mounting style	Cable
Number of position	3 position
Orientation	Straight
Shell plating	Nickel
Standard	Mini XLR
Termination style	Solder
Voltage rating	125V

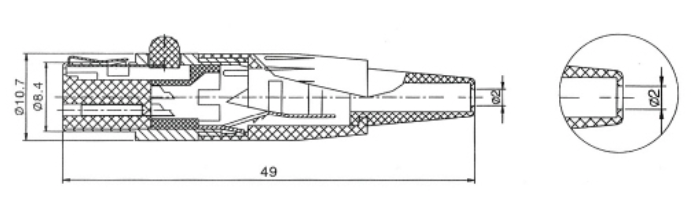

Dimension: (mm)

Mini XLR Male Plug For Mechanical Cable Mounting With Max Cable Section 0.5m㎡
