3 Position 5A Mini XLR Male Plug Adapter 3Pin For Quick Mechanical Cable Fix

Name: 3 Position 5A Mini XLR Male Plug Adapter 3Pin For Quick Mechanical Cable Fix
Brand: ANYO
Price: 1 USD

Buy cheap 3 Position 5A Mini XLR Male Plug Adapter 3Pin For Quick Mechanical Cable Fix product

Brand Name : ANYO

Model Number : T403

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : Audio plug

Rated voltage : 125V

Rated current : 5A

Lifetime : >2000 cycles

Weight : 10g

Connector : XLR connector

Contact Now

3Pin Mini XLR Male Plug Adapter For Quick Mechanical Cable Fix

Description:

The Miniature XLR range was a natural progression from standard XLR series as demand for smaller interconnects increased.

Feature:

• Miniature version of the standard XLR series
• Diecast or Precision machined metal housings
• Metal cable clamp
• Precision machined pin contacts
• Stamped socket contacts
• Solder cup or Printed Circuit board contacts
• Postive latchlock
• Flexible cable grommet

Specification:

Description	Product Attribute
Connector	XLR connectors
Contact material	Copper alloy
Contact plating	Silver
Current rating	5A
Gender	Male
Mounting style	Cable
Number of position	3 position
Orientation	Straight
Shell plating	Nickel
Standard	Mini XLR
Termination style	Solder
Voltage rating	125V

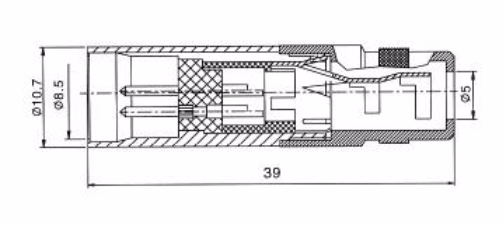

Dimension: (mm)

3 Position 5A Mini XLR Male Plug Adapter 3Pin For Quick Mechanical Cable Fix
